Ceiling Tile Fan AC/DC motor

• Superior air flow performance with minimum

• Low energy consumption

• Easy to install and cleaning

• Ultra quiet operation , no interupt to works at office

• reduce the loading of air conditioning




Superior performance


DC brushless motor with low consumption, quiet and energy saving

With the high rotataion of the fan blades to help air circulation, noise during the operation is inevitable.

The DC motor allows the fan running at low speeds, and its motor design reduces the frictional kinetic energy during operation. It's perfect to use in office and bedrooms.

The DC motor consumes only 1/3 power of a traditional AC motor fan, a lot of electricity will be saved after long-term used.


Comfortable air flow


Proper use internal air circulation , reduce the loading of air conditioning.

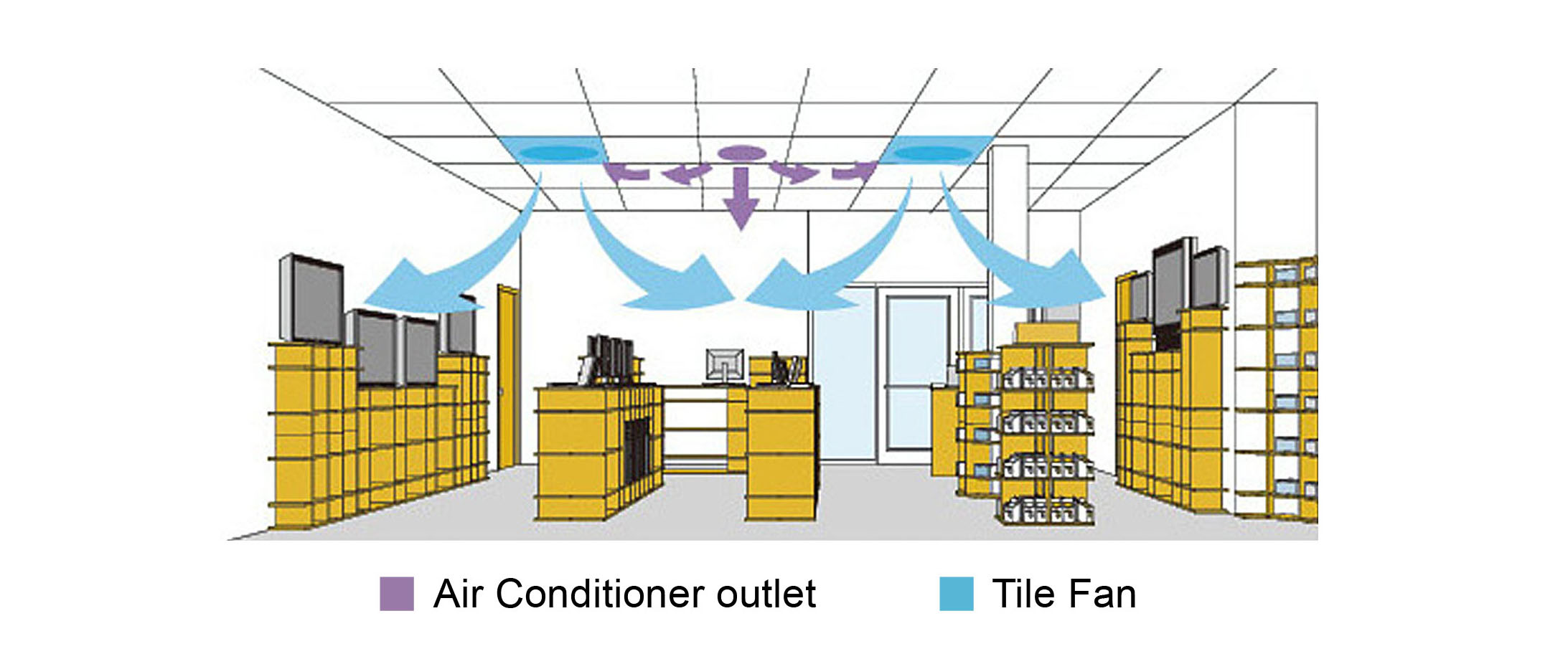

The tile fan does not directly breeze out the cool air. it can faster the air blow, and the rotation pushes the cool air downwards, creating a cool breeze effect. This means when you use both air conditionr and tile fans. You can set the machine temperature higher than the normal setting to save energy. It did not actually change the air temperature in the room, but you can use less energy and saving electricity cost for air conditioning to maintain the same level of comfort.


Convenient and easily use


 • Tile fan can be quickly installed

 • 3 speed remote control

 • Conventient design of grillem, which can be easily to disassemble for cleaning




Comfortable with quiet operation

The air conditioning setting is maintained at 26 °C with Alaska light steel frame energy-saving circulating fan, which can be quickly circulating the indoor temperature, send the comfortable cool air to everywhere at your home. In addition, reducing the uncomfortable feeling caused by excessive temperature difference between indoor and outdoor. Before leaving work, you can also turn off early the air conditioning to save energy.



AC motor

Specification    SA-698

Fan Speed : High Medium Low

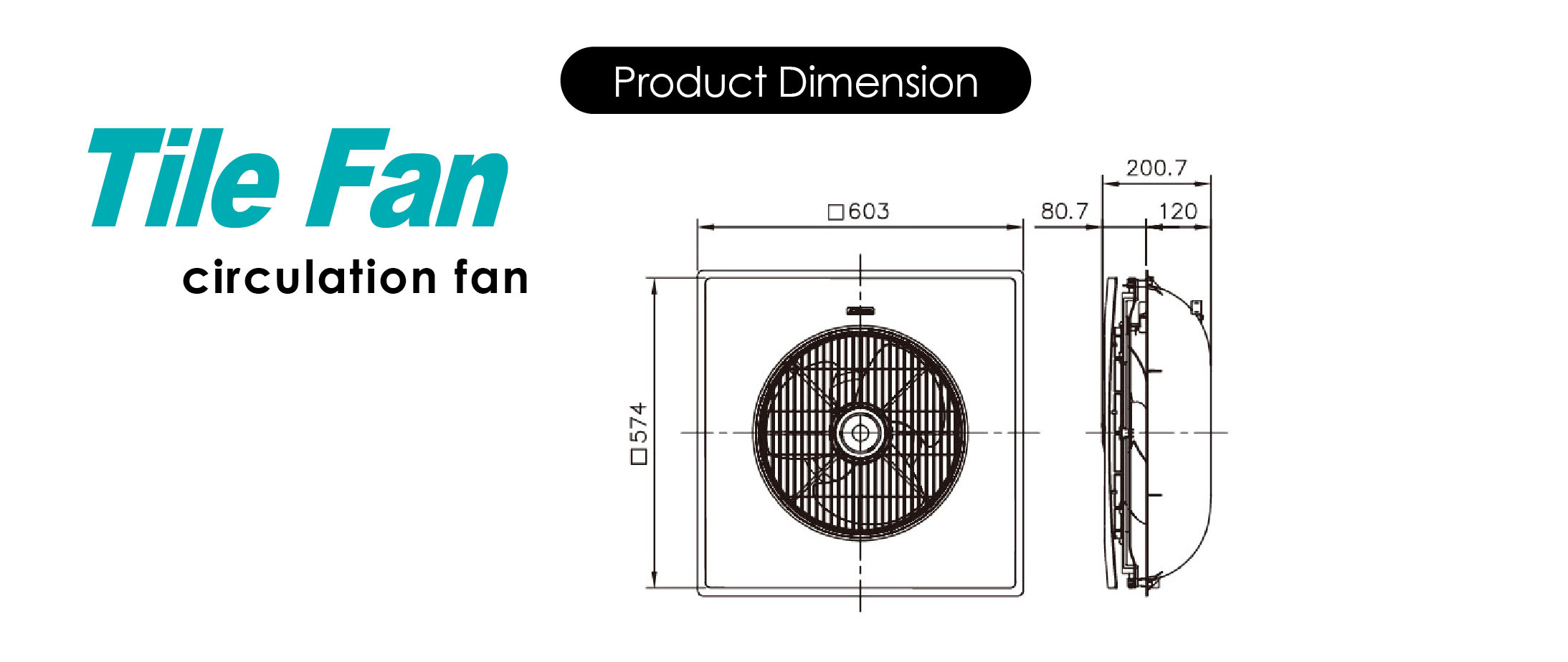

Product Dimension : 24", L603 X W603 X H201mm
Switch : with remote control
Total air volume (mᶾ/h) ※ : 7220 5470 3610
Power Consumption (W) : 45 35 27
Energy Efficiency (mᶾ/min/w) # : 2.8
Sound (dBA) : 54 50 39
Voltage : 220V / 50Hz
Motor : AC motor
Net weight : 5.0kg
Body Color : White
Installation Size : 587 x 587 x 300mm

 ※ calculate by per square meter of hour
    # calculate by power per square meter of minute
DC brushless motor

Specification    SA-698D

Fan Speed : High Medium Low
Product Dimemsion: 24", L603 X W603 X H201mm
Switch : remote control
Total Air Volume (mᶾ/h) ※ : 8910 6970 4650
Power Consumption (W) : 28 16.5 7.5
Energy Efficiency (mᶾ/min/w) # : 4.5
Sound (dBA) : 54 50 39
Voltage : 220V / 50Hz
Motor : DC brushless motor
Net weight : 4.5kg
Body color : white
Installation size : 587 x 587 x 300mm

 ※ calculate by per square meter of hour
    # calculate by power per square meter of minute
** In order to have the best performance, if the installation of the Tile Fan are more than 2, then the distance of the Tile fans are recommending having 3~4 unit of the suspended ceiling.
